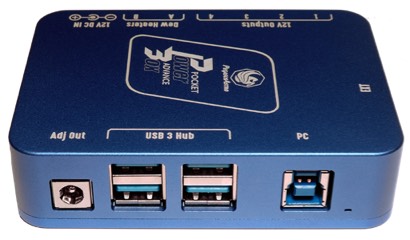

Pocket Powerbox Advance

Pocket Powerbox Advance
  Zoom
Price:  £259.00(Inc. 20% VAT)
+

Product Code:  PEG-PPBADV
Manufacturer:  Pegasus Astro

Pegasus Astro




Pocket Powerbox Advance (PPBADV) is a welcome addition to our “Powerbox” product series. Proudly stands between Pocket and Ultimate Powerbox and it has been designed to provide advanced features than Pocket Powerbox in a good price and in a more compact / quality design.

Feature List of Pocket Powerbox Advance:

  •     4 x 12V DC Power outlets for your equipment (A single channel to switch all four outputs ON/OFF via software)
  •     12 Amps of total distributed current
  •     Adjustable Output (3, 5, 8, 9, 12Volt) / 3Amps (Can be switched ON/OFF) Power your DSLR / Mirrorless camera
  •     Embedded Powered USB3 Hub – 4 x USB3 Ports or 3 x USB2 Ports Available
  •     1 x Power USB Port (up to 3Amps) – Suitable for Raspberry PI 3/4 power
  •     Port (RJ12) for external accessories (E.g External Focus Controller)
  •     2 Channels PWM Dew Heaters – RCA Outputs (Tune levels via software)
  •     Humidity and Temperature Sensor (included)
  •     Auto Tune Dew Heater Channels
  •     Reverse Polarity Protection
  •     USB / PC Controlled or Standalone Operation out of the box
  •     Lightweight and extremely compact aluminium enclosure

4 x 12V DC Power outlets for your equipment
A powerful mosfet transistor provides “electric juice” to your precious equipment. It supply of electricity 4 outputs. Can switch on/off all 12V outputs (not individually).

This single channel can provide up to 10Amps of current to all ports. Current is shared among the 4 x 12V ports

Adjustable Regulated Output
An adjustable output is suitable to provide power to your DSLR / Mirrorless camera / or your RPI3/4. You can tune the voltage to different levels (3,5,8,9,12 Volts). Please note that we provide a wide range of battery couplers for Canon, Nikon, Sony, FUJI Cameras

Built in Voltmeter
A precise voltmeter measures and displays in real time your input voltage. If the input is more than 14.5V, the power is instantly cut off to protect your equipment.

Built in Amp-meter
An Amp-meter placed after the DC input reports the total electric current.
Moreover there are three additional amp-meters: One for the 12V outputs and two for the Dew Heater Channels. This allows you to easily monitor detailed and overall power consumption of your equipment.

In the box

  • Pocket Powerbox Advance Controller ✔
  • External Temperature / Humidity Sensor ✔
  • 4 x Power DC 2.1 to 2.1 male cable (1m) ✔
  • DC Cable to Cigarette Lighter Adapter (10A fused) ✔
  • USB3 Cable Type B (1.8m) ✔

Dimensions

  • Size (Width , Depth, Height) - 100mm x 73mm x 25mm
  • Weight - 300g
