Pegasus Power Supply Unit 12V

£59.00
(Inc. 20% VAT)
Loyalty Points: 59
Select Plug
+
Product Code
PEG-PSU-21
Brand
Email us a question about this ProductPegasus Astro
Description

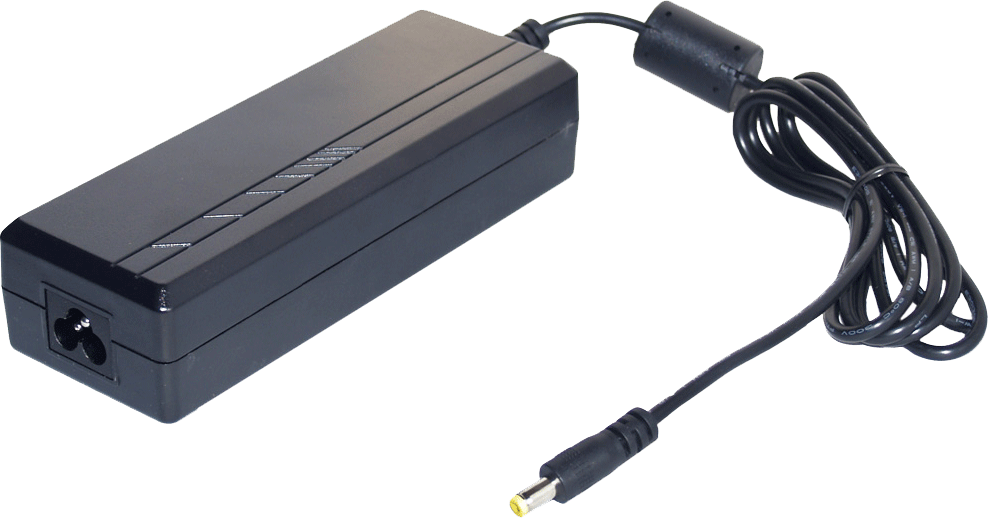

Pegasus Power Supply Unit 12V

Pegasus sealed and certified switching power supply unit is the perfect match for our Pegasus Astro Products. It can provide 12V and up to 10Amps. (120W of total power). Low ripple and noise ensures that you will provide the required and correct “electric juice” to your precious equipment. Comes together with a power cord (1.8m) for your country type.

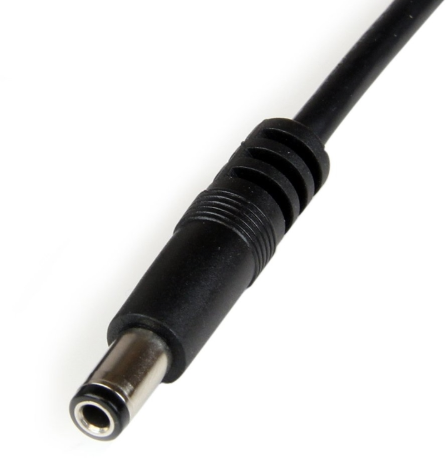

Please notice there are four types of DC Cords (Choose wisely!)

  • 2.1mm 1.5A (for Falcon Rotator & Motor Products)
  • 2.1mm 10A (for Pocket Powerbox and any other Pegasus Products)
  • 2.5mm 10A (for Ultimate Powerbox / DewMaster)
  • XT60 10A (for Ultimate Powerbox v2)

Pegasus Power Supply Unit 12V 2.1mm2.1mm 1.5A / 2.1mm 10A

Pegasus Power Supply Unit 12V 2.5mm2.5mm 10A

Pegasus Power Supply Unit 12V XT60XT60 10A

Specifications:

  • Output Voltage: 12V
  • Loading: 0-10 Amps
  • Max. Power : 120 Watt
  • Input Voltage Range: 90-264V, Connector Size: 5.5 * 2.1mm or 5.5 * 2.5mm or XT60
  • Frequency: (47-63)Hz
  • Cord Length: 150cm / 5 feet
  • Regulated Output With Low Ripple Noise
  • Sealed / Protected Enclosure (humidity / dust cannot enter)
  • Safety Agency Requirements and EMI/EMS Certified
  • Efficiency level (ErP) : VI
  • CE and FCC certificate acquired
  • Dimensions: 169 x 61 x 39 [mm]

Protections

  • Over current/ Short protection: The power supply will self-protect any output to ground & auto recovery when abnormal circuit faults remove. An output short circuit is defined as any output impedance less than 0.1 ohms.
  • Over Voltage: The power supply will be auto recovered when faults remove
  • Input protection: F1:6.3A 250V Fuse The power supply shall be protected against power line surges and any abnormal condition
  • No Load protection The power supply is provided with no load operation to prevent the power supply and system from damage.
  • Protection class I, (ITU-T K.21 Surge 6KV on request)
Specifications

Specifications: Pegasus Power Supply Unit 12V

  • Output Voltage: 12V
  • Loading: 0-10 Amps
  • Max. Power : 120 Watt
  • Input Voltage Range: 90-264V, Connector Size: 5.5 * 2.1mm or 5.5 * 2.5mm or XT60
  • Frequency: (47-63)Hz
  • Cord Length: 150cm / 5 feet
  • Regulated Output With Low Ripple Noise
  • Sealed / Protected Enclosure (humidity / dust cannot enter)
  • Safety Agency Requirements and EMI/EMS Certified
  • Efficiency level (ErP) : VI
  • CE and FCC certificate acquired
  • Dimensions: 169 x 61 x 39 [mm]

What's in the Box

What's in the Box: Pegasus Power Supply Unit 12V
