ZWO M54 Tilter

£59.00
(Inc. 20% VAT)
Loyalty Points: 59
In stock, Shipped in 1-2 working days
+
Product Code
Z474-M54-TILTER-NEW
Brand
Email us a question about this ProductZWO

ZWO offers 2 Year Warranty for all Products bought new

Description

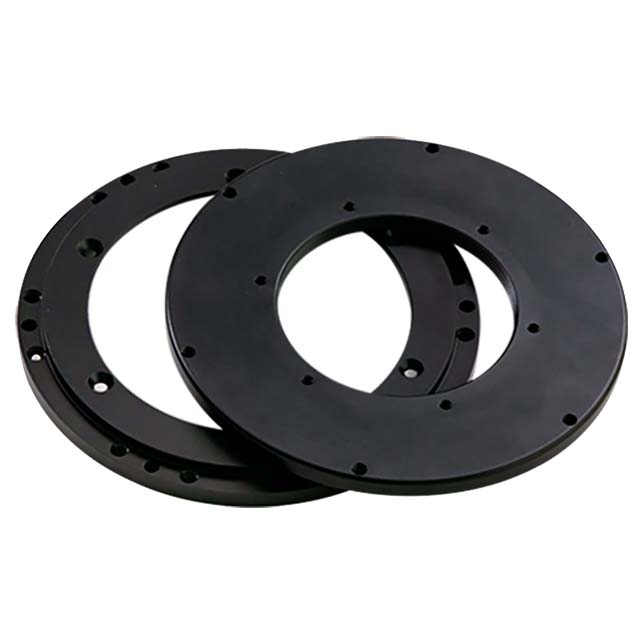

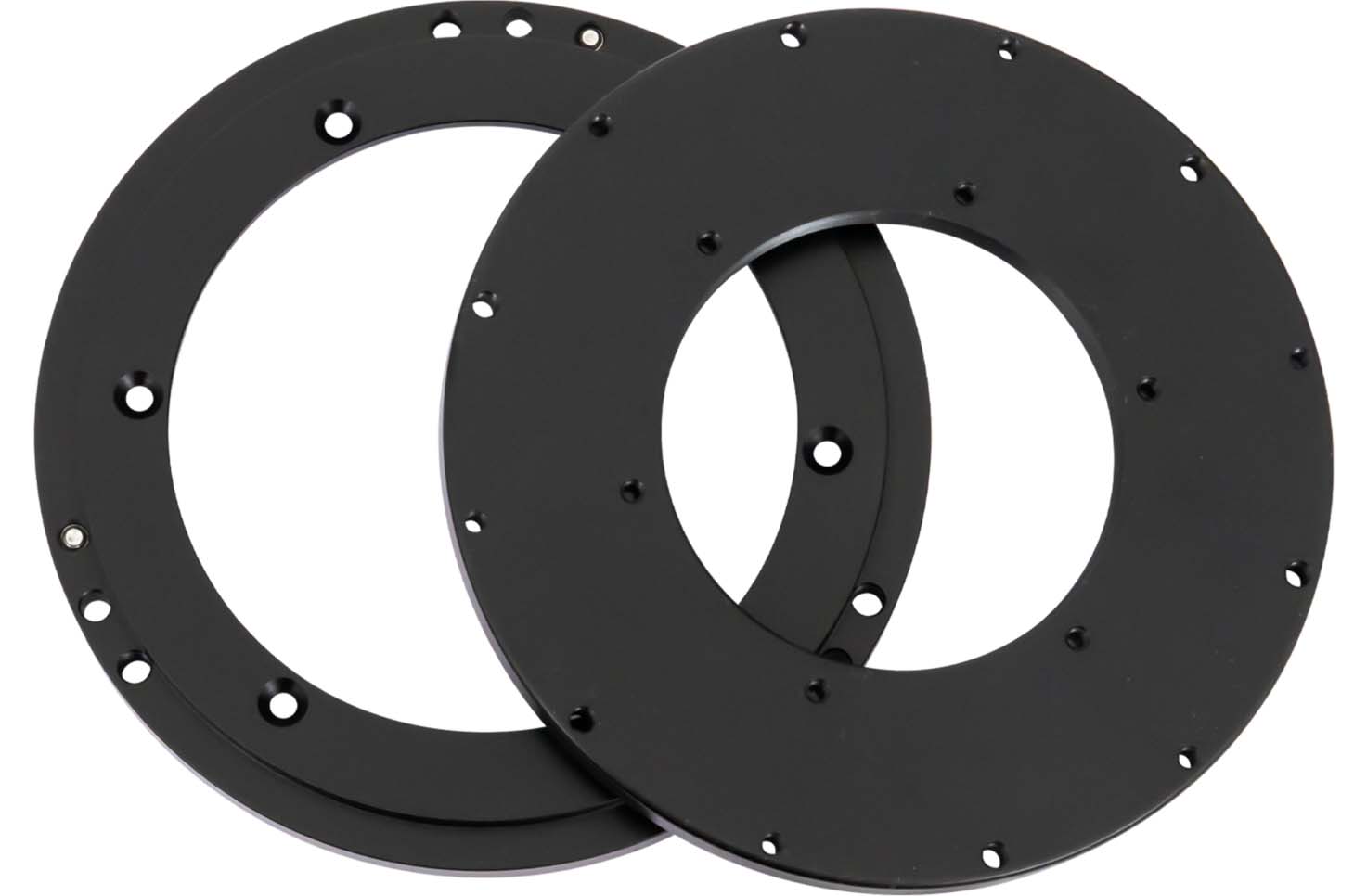

ZWO M54 Tilter

The M54 tilter is making sensor tilt adjustment much easier than before by allowing you to do the adjustment on the rear end of the camera. You now can make some adjustments during imaging, instead of taking the camera off from the telescope.

Compatible cameras: ASI2600MC Duo, ASI2600MM/MC Pro, ASI6200MM/MC Pro, ASI2400MC Pro.

It also fits 7x50mm EFW.

* Notice: The M54-tilter can not be fitted next to the OAG-L (in the direction of telescope->M54-tilter->OAG-L), please pay attention to the 55mm-back-focus solution when using.

How to install the M54 tilter:

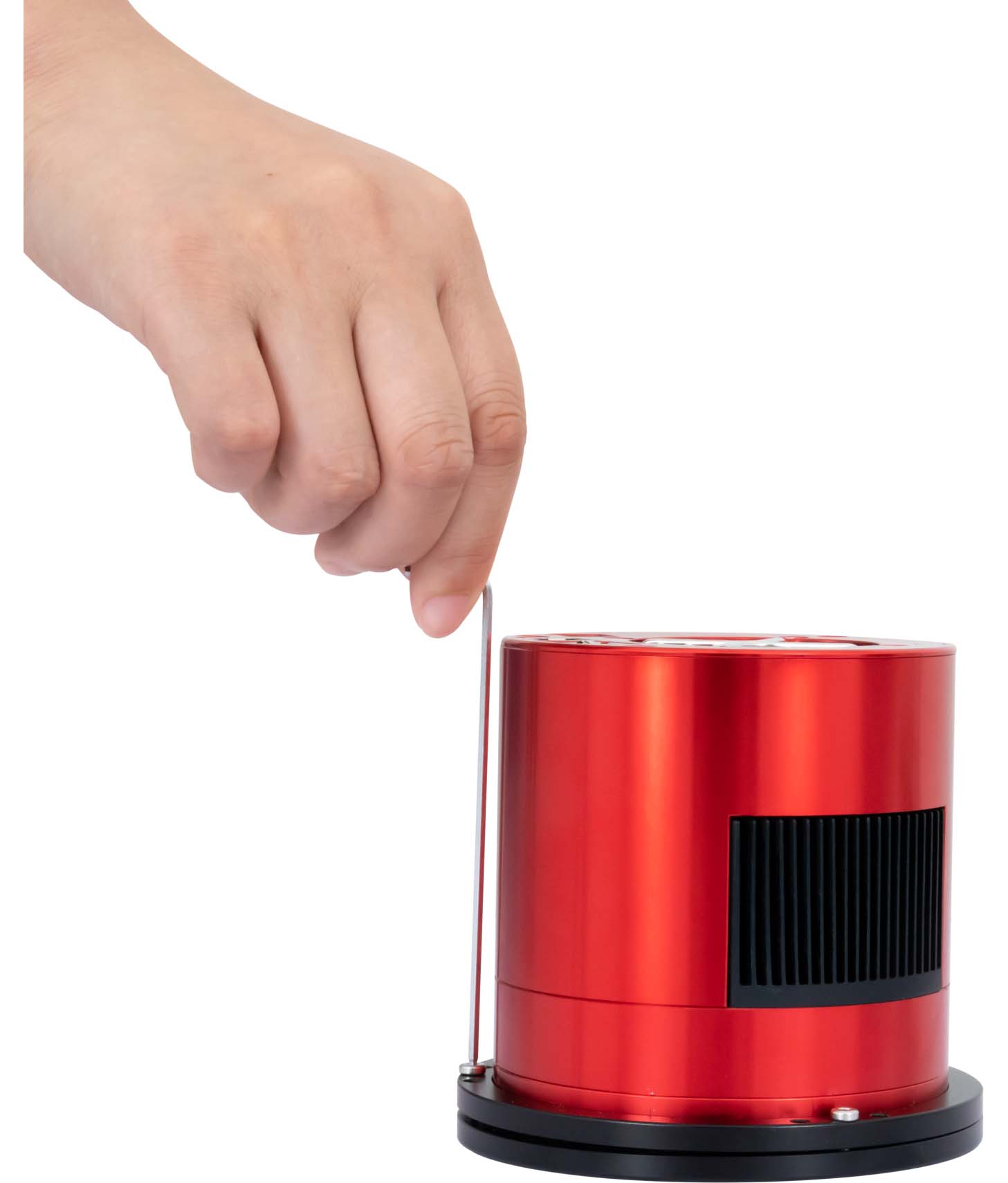

1) Use a hex wrench to take off the three M3 cylindrical screws on the adapter.

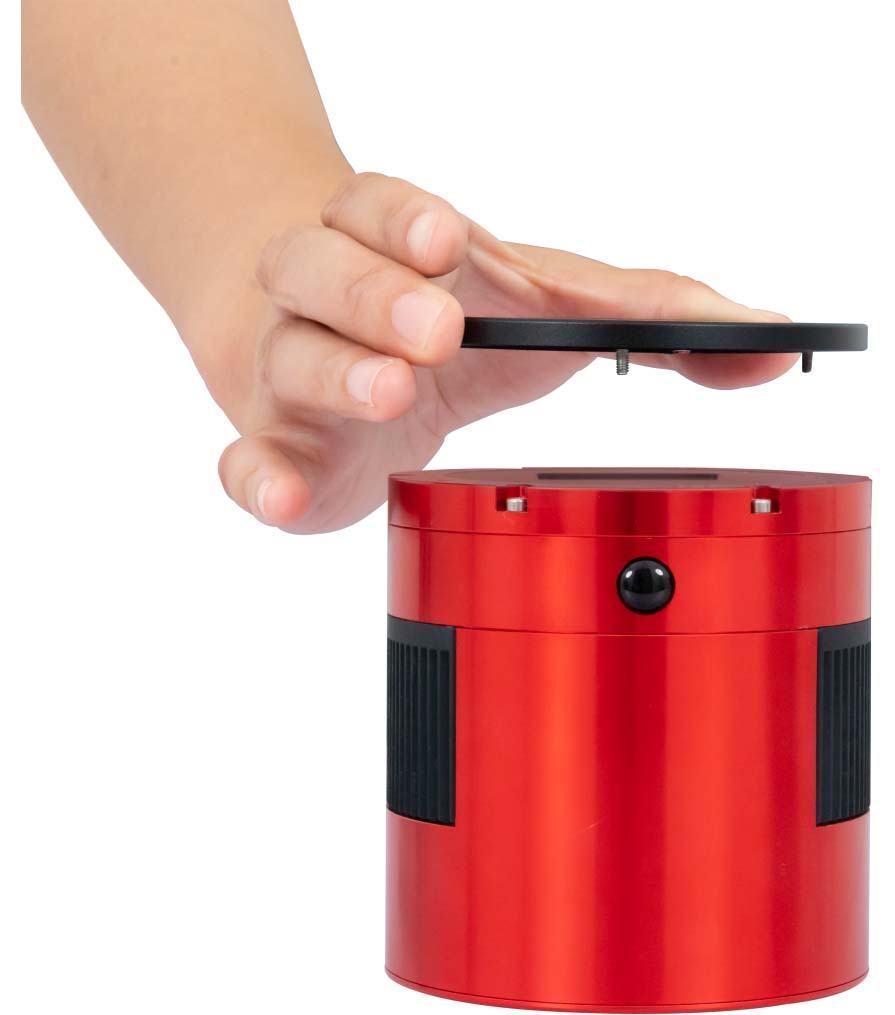

2) Disassemble the sensor tilt plate from the DSO camera.

3) Place the base of the M54-Tilter onto the cooled camera. Fix them with six 5*6Phillips flat-head screws.

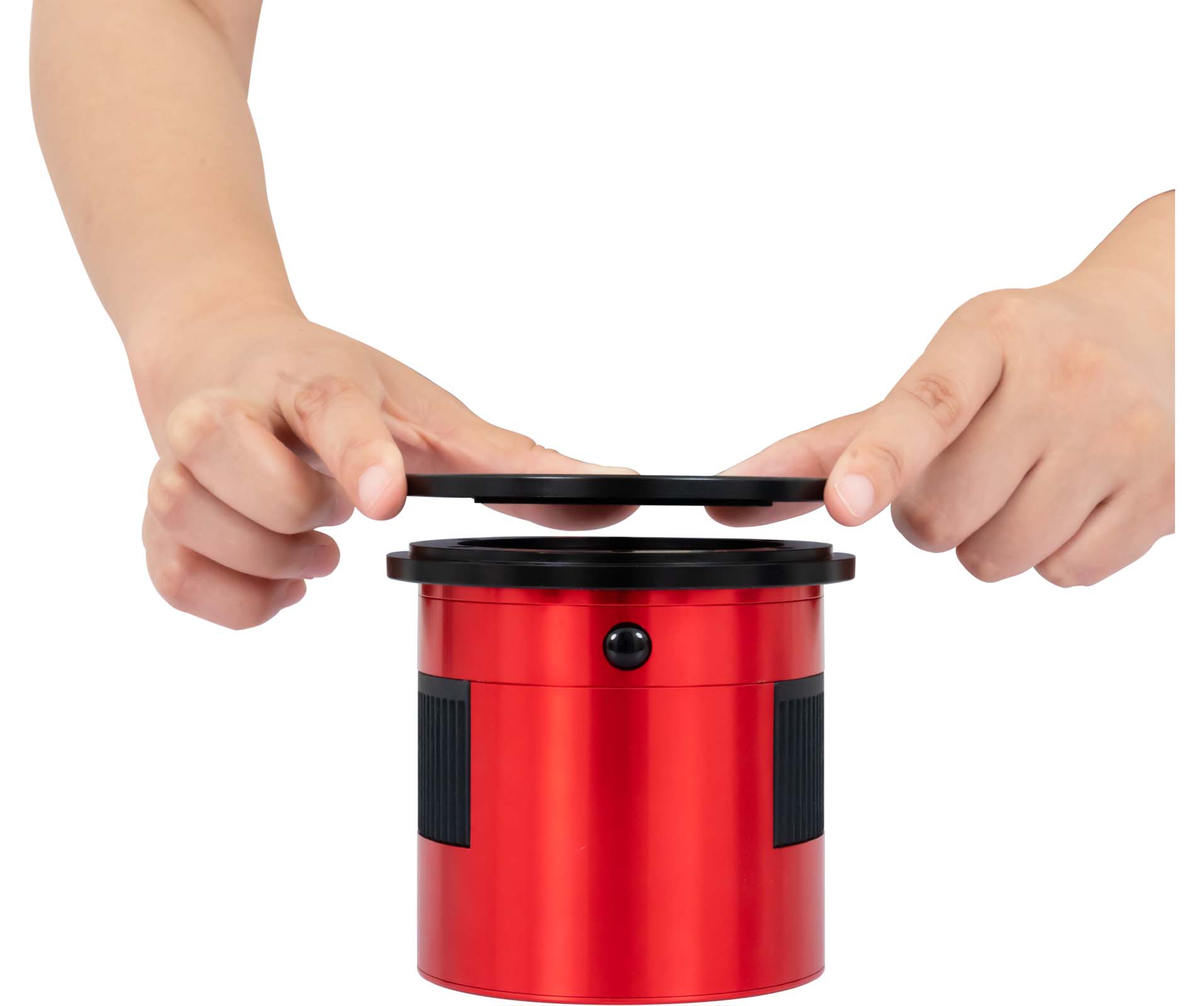

4) Then place the top cover of the M54 tilter onto the camera. Turn over them and fix the base and top cover with three M3 screws. Please do align the screws to the M3 screw holes (as shown in the mechanical drawing below). The angle between each two M3 screws should be 120°.

Specifications

Specifications: ZWO M54 Tilter

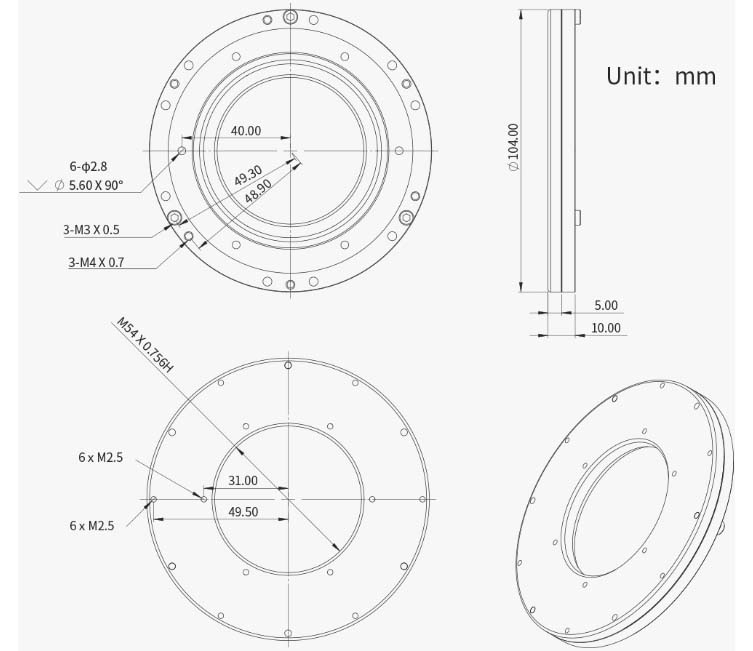

ZWO M54 Tilter Mechanical Diagram

What's in the Box

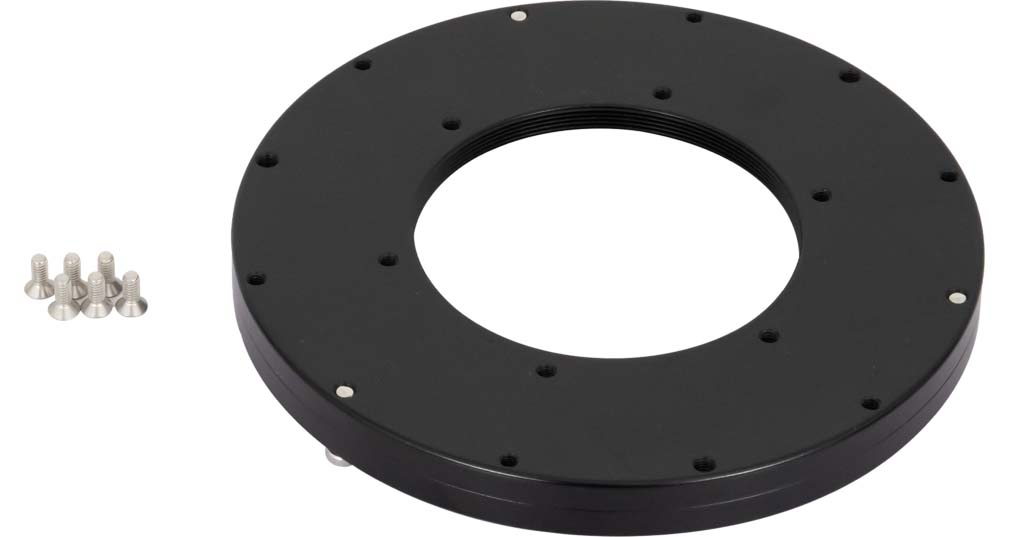

What's in the Box: ZWO M54 Tilter

  • M54 tilter
  • 6*M2.5 countersunk screws

ZWO M54 Tilter - What's in the box
