Kendrick Dewminator 4-Channel Dew Controller

NEW
Kendrick Dewminator 4-Channel Dew Controller
  Zoom
Price:  £189.00(Inc. 20% VAT)
+

Product Code:  2001-DEWMTR
Brand:  Kendrick Astro Instruments

Availability:



Incoming, expected 18/01/2022

Kendrick Astro Instruments

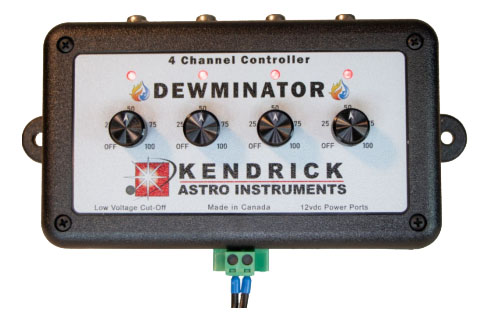

Kendrick Dewminator 4-Channel Dew Controller - Kendrick new mid-level controller is the perfect choice for those who are budget conscious, but still want more than basic features.

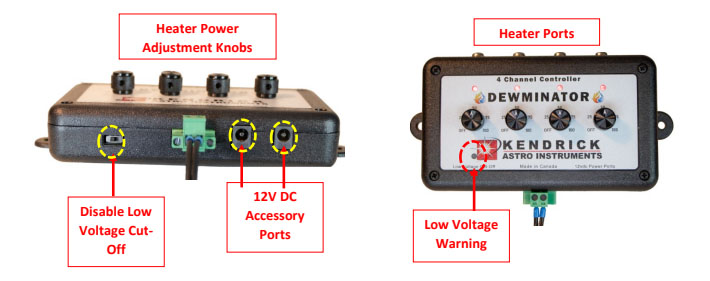

Dewminator features 4 individual adjustable heater ports and dual DC Accessory Ports that can power other 12V equipment.

Product Features:

Heavy-Duty, individually adjustable power output for up to 4 heaters.
2 DC Accessory Ports
15 Amps total power (max 7 Amp with Cigarette Lighter Plug).
Dimmable lights! In fact, after 20 seconds, they shut-off! Turning any knob will "wake-up" the lights again.
User Changeable Cord.
Cord Management - Power other devices using the 2 DC Accessory Ports. For example, our 12V USB Hub.
Low Voltage Cut-Off - A Kendrick Standard that saves your battery from permanent destruction.
Disable Low Voltage Cut-Off. We don't recommend it, but if you want to drain your battery beyond repair it is now possible.

Anderson Power Pole Option: All Kendrick Dew Controllers include a power cord with that uses a Cigarette Lighter Plug with an internal 7 Amp fuse. Some astronomers prefer Anderson Power Pole Connectors which are superior to cigarette lighter plugs. We also terminate the power cord with a special "pluggable terminal block" which makes it easy to make your own power cord. For convenience, we offer 2 Anderson Kits that include the Red & Black plastic shells and 2 metal contacts. The "Pre-Welded" model permanently fuses the plastic shells together using a plug orientation that works with Kendrick Power Supply/Distribution products. If you are unsure of the plug orientation you need, purchase the "non-welded" model.

Extra Power Cords are available. The controller does include a power cord, but some people like a spare cord and they are available for purchase.

Features/Specifications:

  • Operating Voltage: 12V DC (12.6 - 13.8V DC nominal)
  • 4-Channel Heater Ports: each independently programmable.
  • User replaceable power cord (we recommend Anderson Power Poles)
  • Maximum Amperage Output:
    • Cigarette Lighter (fused) Plug: 7 Amps max.
    • User supplied plug: Up to 15 Amps
  • On-Board auto-reset 15 Amp “Poly” Fuse
  • Low Voltage Warning (warning @ 11.8V / shut-down @ 11.5V)
  • Disable Low Voltage Cut-Off... we don‘t recommend it, but if you’re willing to ruin your battery, you can drain it dry if you wish by turning this feature OFF.
  • Dimmable Lights
  • Lights Auto Shut-Off (after 20 seconds) Turn any knob to turn on lights again
  • DC Accessory Ports (2): 12V, 4 amp
    • 5.5mm X 2.5mm X 9.3mm (barrel length).
    • Switchcraft 760 (DigiKey PN#: SC1051-ND)


Physical Dimensions: (including mounting tabs):
3.25” X 6.75” X 1.147” (82.5mm X 171mm X 29mm) weight (excluding power cord and sensors: 5.8oz (164 grams)

Included with this controller:

Power Cord – 70” (180cm) Cigarette Lighter version with replaceable 7 Amp fuse
Velcro adhesive mounting pad
